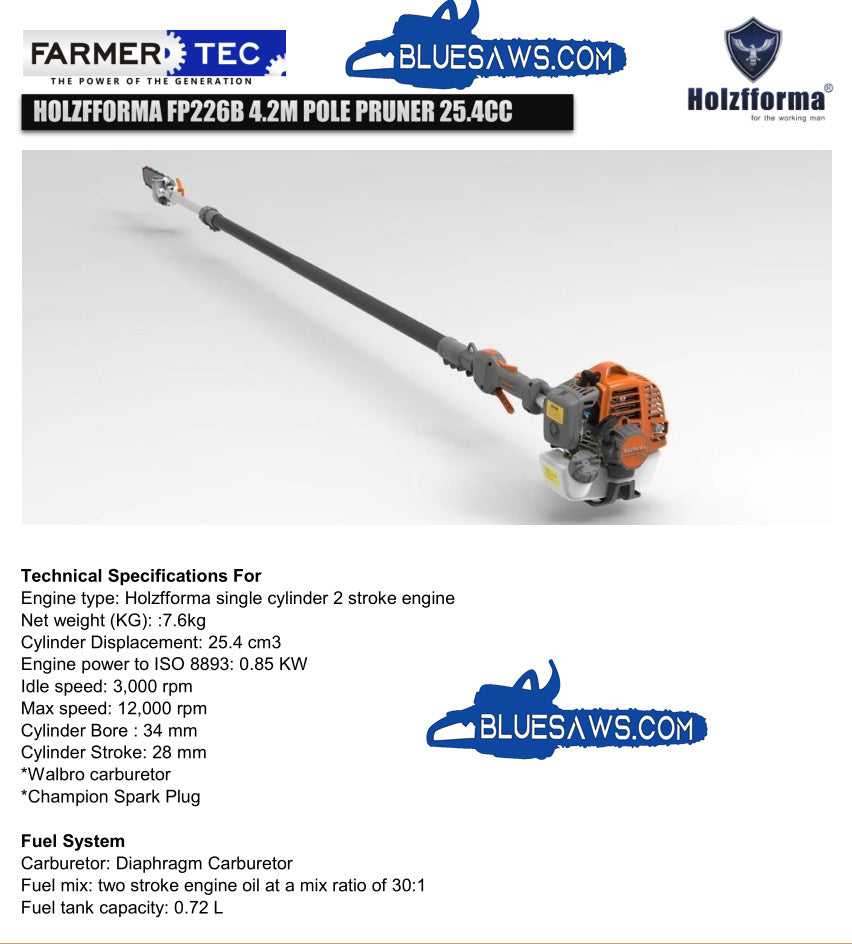

Technical Specifications For
Engine type: Holzfforma single cylinder 2 stroke engine
Net weight (KG): :7.6kg
Cylinder Displacement: 25.4 cm3
Engine power to ISO 8893: 0.85 KW
Idle speed: 3,000 rpm
Max speed: 12,000 rpm
Cylinder Bore : 34 mm
Cylinder Stroke: 28 mm
*Walbro carburetor
*Champion Spark Plug
Fuel System
Carburetor: Diaphragm Carburetor
Fuel mix: two stroke engine oil at a mix ratio of 30:1
Fuel tank capacity: 0.72 L
Cutting Attachments
Gear box:unadjustable
Sawing diameter : 30 cm
Working length : 2.9—4.2 m
